| Porcelain Laser Marking Machine - ccm-CT50
Specifications：ccm-CT50 |
Brief introduction:

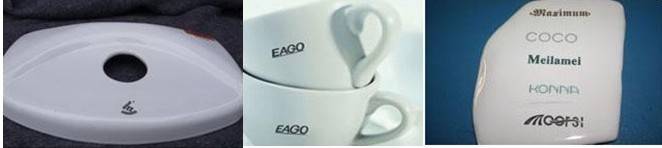

Porcelain laser marking machine is our special designed model which used for porcelain field.Because it has high intensity laser beam and fine laser spot,so it can mark any sophisticated figures,texts.
Equipment Features:
1. Integrated whole structure, small volume, be applicable to production line for flying marking.
2. Adopts SYNRAD RF metal laser tube, imported from USA, characterized by excellent performance and long life time <20k hours>.
3. With mirror marking function.
4. Worktable can be made according to customers’ production requirement.
5. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.
Application Industry
Materials: Majority of nonmetal materials such as paper, organic materials, plastic, epoxy resin etc.
Fields: Electronic components, medicines, food&beverage package, and craftworks.
Technical Parameters
|
Laser wavelength : |
10640nm |
|
Laser power : |
0~10w serially adjustable |
|
Working area : |
70×70mm ~100mmX100mm |
|
Marking speed : |
≤7000mm/s |
|
Mini. character : |
0.2mm |
|
Repeated precision : |
+0.003mm |
|
Cooling style : |
air cooling |
|
Average power consumption : |
≤0.4kw |
|
Power supply : |
220V/50HZ 5A |
