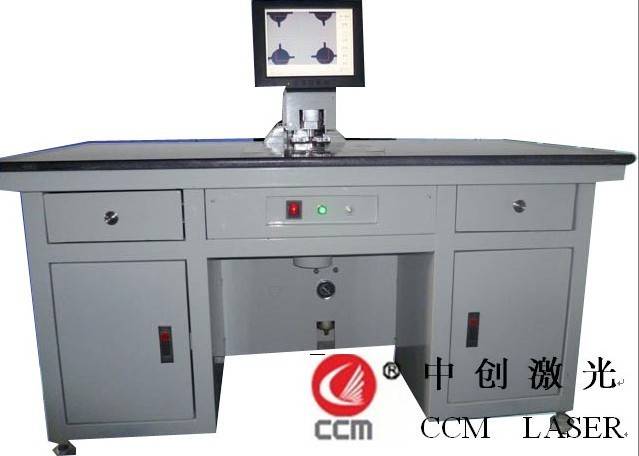

| Automatic drilling machine - Automatic drilling machine
Specifications：CCM-DM |
Specifications
1.High and stable output capacity.
2.Highly automatic operation.
3.Steady structure
4.Bellows Hole Drilling Machine
1. This kind of corrugated pipe is mainly used for underground water drainage system.
2. It is fully computer/instrument controlled, automatic production line. It features high and stable output capacity, and highly automatic operation.
3. Different types of extruders can be selected to match with the production line according to the material properties.
4. The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they may have air or water cooling system. The belling process can also be realized on line. High precision cutting can be guaranteed by rotation type cutting machine.
|
Plastic Corrugated Percolated Pipe | |
|
Tubing Material |
HDPE,PVC |
|
Tubing Structure |
wall is corrugated, inner wall is smoothing |
|
Punching Method |
Notch |
|
Manufacture Method |
Automatic and Mechanized |
|
Percentage of Open Area |
42cm2/m ~ 120cm2/m |
|
Distribution of Groove Hole |
Voluntary |
|
Aperture of Tubing |
50mm ~ 250mm |
|
Length of tubing |
6000mm |
|
Rigidity of tubing |
9kN/m2 |
|
Joint Method |
Flared joint without tie-in |
|
|
|
