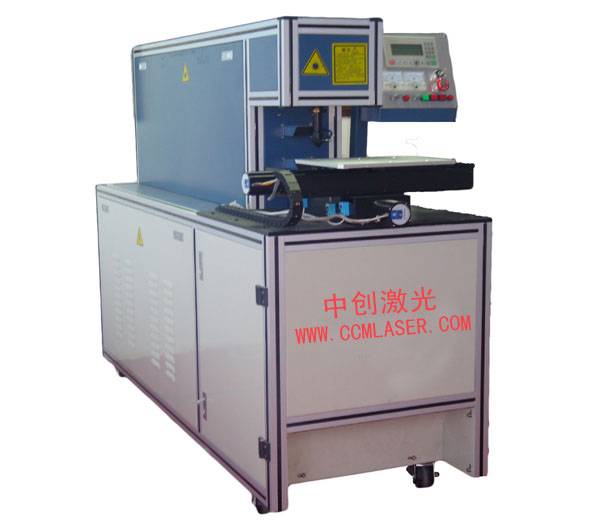

Adopts dual optic path systems, contains the laser, optical system, electric controller, laser power supplies, mechanical components, water-cooling system and air exhauster, etc.

1. It’s mainly used in processing HDMI cable, mini-filament ( FPC cable), and coaxial cables，etc.

2. Cutting speed is high, can process several cable beams in one time.

3. With the best price-performance ratio.

1. Dual optic path system, the above and below laser beam can strip insulation of any shape at the same time, high efficiency.

2. Adopts imported RF metal laser tube, performance is super stable, life time of laser tube is long.

3. Adopts precise linear module transmission, with high precision, high speed, long life, less abrasion, compact construction and stable running.

4. PLC controller, user-friendly interface, simple and convenient for operation.

2.Be able to process filament and mini-filament above AWG#32,drop-out lines, ribs and coaxial cables etc

2. It can well strip the shield without deforming and hurting insulation and conductors. So the rate of final products is very high.

3.Non-mechanically working, no mechanical extrusion and stress on products, the processing quality is very good.

4. High-speed laser processing, high efficiency .

5. Precise control of cutting location, depth, size.

Materials: Filament, drop lines, mini-filament above AWG #32, ribs and coaxial cables etc.

Fields: Multimedia, medical apparatus and instruments, mobile phone, digital camera, micro-electronic industry etc.
